2 Post Car Lift HP - 40 C

Contact Us by WhatsApp Ask for your budget

Description:

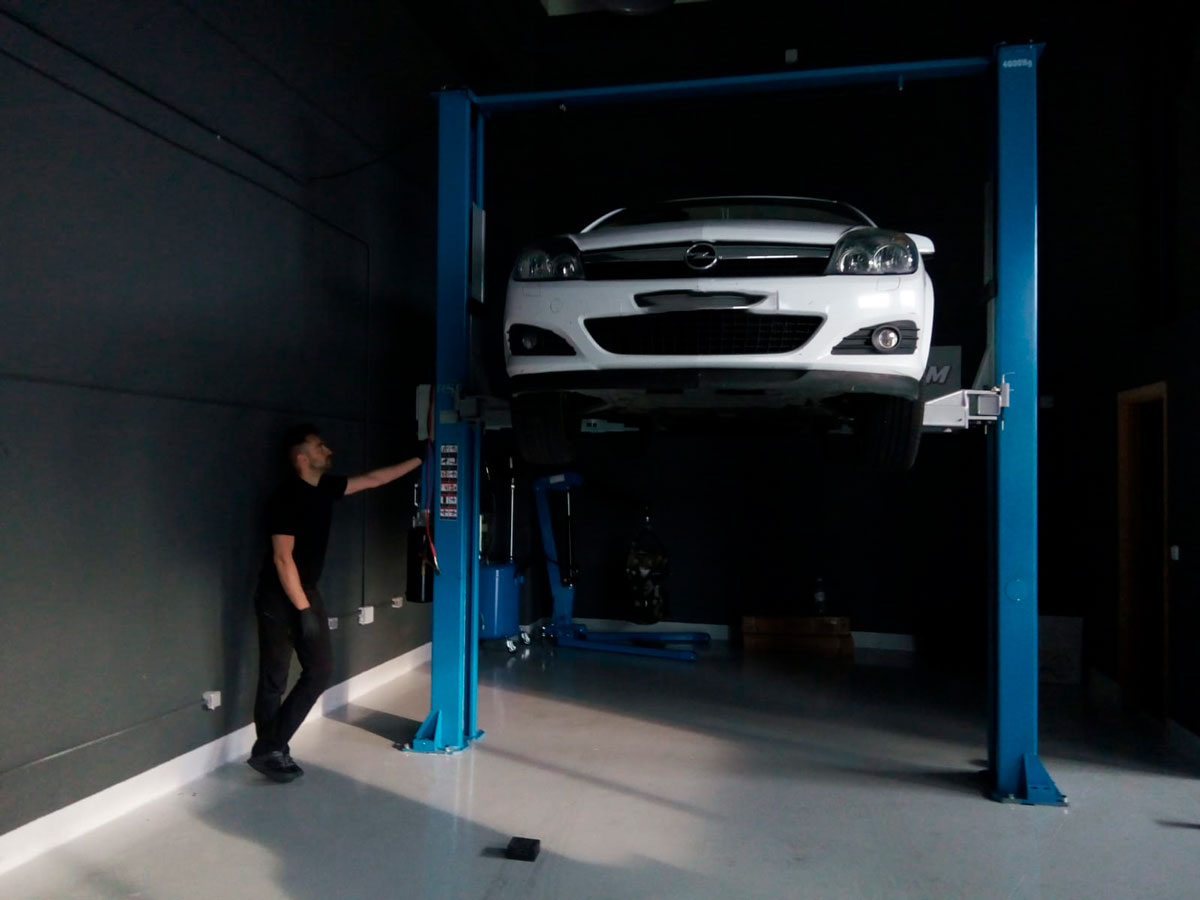

The HP-40C is a two-post lift electro-hydraulic with upper bridge, designed for lifting vehicles up 4000 kg . It has a greater lifting capacity with lower power consumption, by optimizing the design. This lift has triple safety device: electrical, hydraulic and mechanical.

CharacteristicsData sheetPhoto GalleryAccessoriesVideo 1Video 2Video 3Video 4Video 5

• Anchors security features that protect the hydraulic system.
• Hydraulics reliable, long lasting and almost maintenance-free.
• Cargaextensibles arms with adjustable height and systems combination of rubber pads support.
• Robust sheet steel post of 5 mm.
• Automatic Lock loading arms (unlocks in the lowest position).
• Control synchronous undisturbed and secure, using steel cables 12 mm in diameter.
• Upper protective plate for hydraulic hoses and steel cables.
• Capacity: 4,000 kg
• Maximum lift height: 1,900 mm
• Distance between post: 2,815 mm
• Overall width: 3,425 mm
• Power supply: 380 V three-phase
